| Brand |
APC |
| Model |

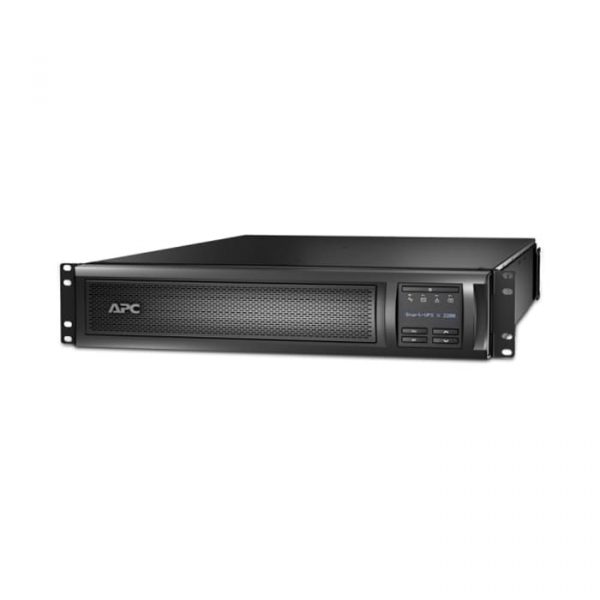

SMX2200RMHV2U UPS “APC” Smart-UPS X 2200VA Rack/Tower LCD 200-240V |
| Output Power Capacity |
1.98kWatts / 2.2kVA |
| Nominal Output Voltage |
208V, 230V |
| Topology |
Line interactive |
| Output Connections |
(8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup), (1) IEC 320 C19 (Battery Backup) |
| Nominal Input Voltage |
208V, 230V |
| Input Connections |
IEC 60320 C14 |
| Input Voltage Range for Main Operation |
140 – 280V |
| Typical Recharge Time |
3hour(s) |
| Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators, Multi-function LCD status and control console |
| Height |
85MM, 8.5CM |
| Width |
432MM, 43.2CM |
| Depth |
667MM, 66.7CM |
| Weight |
37.32KG |
| Warranty |
3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
