| Brand |
LONGWELL ราคา 1,250 บาท Inc.Vat |
| Model |

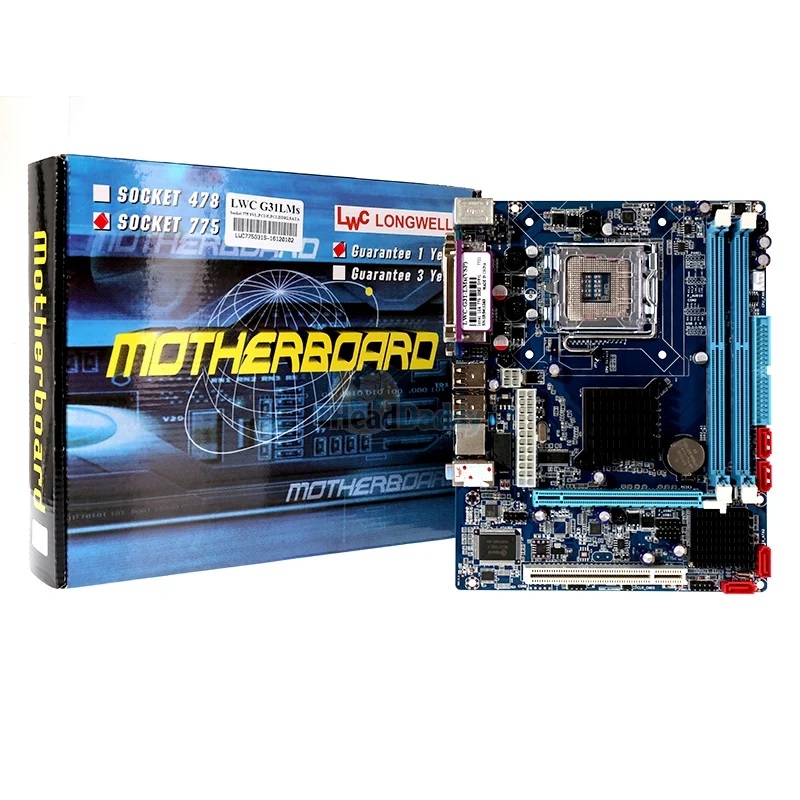

INTEL G31LMS
|
| CPU Support |
Intel® Celeron
Intel® Celeron D
Intel® Celeron Dual-Core
Intel® Core 2 Duo
Intel® Core 2 Quad
Intel® Pentium 4
Intel® Pentium D
Intel® Pentium Dual Core
|
| Socket |
775
|
| Chipset |
Intel G31 Express North Bridge
Intel ICH7 South Bridge chipsets
|
| Memory Support |
Dual Channel DDR2 Memory Technology
2 x DDR2 DIMM Slots
Support DDR2 667/800 MHz
Max.capacity up to 4GB Memory
|
| Memory Type |
DDR2
|
| Memory Bus |
667 / 800 MHz
|
| Memory Slot |
2 Slots
|
| Audio |
Supports 6 channels sound input( ex: Realtek ALC662)
Supports 16-bit ADC (Analog Digital Converter)
Supports multipls stereo input mixer
|
| FSB |
processors with 800/1066/1333 MHz FSB |
| Expansion Slots |
1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Slot
|
| Storage |
4 x SATA2 Connector
|
| Internal I/O Connectors |
1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
2 x F USB 2.0 Connector
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector
|
| Back Panel Connectors |
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x VGA (D-Sub) Port
1 x Serial Port (Com1)
1 x Parallel Port (LPT)
4 x USB 2.0 Port
1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)
3 x Audio Jacks: Line in / Speaker / Microphone
|
| LAN |
10/100 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8105E
|
| Form Factor |
Micro ATX Form Factor Dimension: 21.2 cm x 17.0cm
|
| Operating System Support |
Microsoft® Window® XP / Vista / 7 / 8 / 10
|
| Package Dimension |
(W x D x H) : 23.00 x 18.00 x 5.50 cm |
| Gross Weight |
0.60 KG |
| Volume |
2,277.00 cm3 |
