| Brand |
LONGWELL ราคา 1,390 บาท Inc.Vat |
| Model |

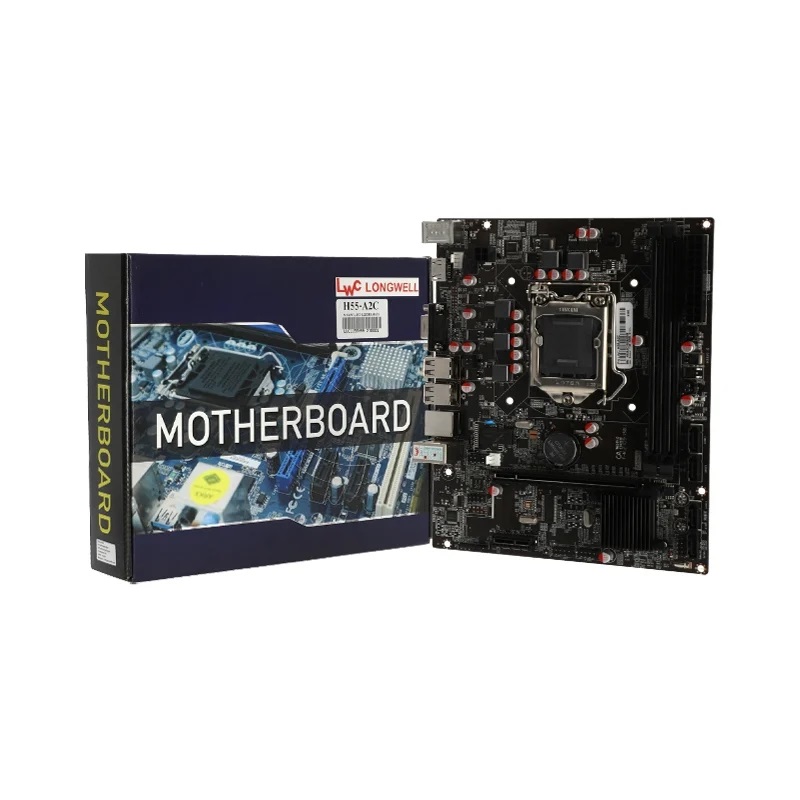

LWC H55-A2C
|
| CPU Support |
Intel® Core™ i3/i5/i7/Pentium®/Celeron® Processors
|
| Socket |
1156
|
| Chipset |
Intel H55
|
| Memory Support |
2 x DIMM Support DDR3-1600/1333/1066 MHz Non-ECC, Un-Buffered Memory
Max 8GB (4GB+4GB) RAM 16 Chip only
|
| Memory Type |
DDR3
|
| Memory Bus |
1600 / 1333 / 1066 MHz
|
| Maximum Memory Bus |
1600 MHz
|
| Memory Slot |
2 Slots
|
| Graphics |
N/A
|
| Multi Graphic Support |
None
|
| Audio |
Realtek High Definition Audio Code
|
| Expansion Slots |
1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
|
| Storage |
4 x SATA II 3.0Gb/s Connector
|
| USB |
N/A
|
| Internal I/O Connectors |
1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
2 x F USB 2.0 Connector
1 x CMOS
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector
|
| Back Panel Connectors |
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x HDMI Port
1 x VGA (D-Sub) Port
4 x USB 2.0 Port
1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)
3 x Audio Jacks: Line in / Speaker / Microphone
|
| LAN |
10/100 Mb/s auto negotiation Half/Full duplex capability
|
| Wireless Data Network |
None
|
| Form Factor |
Micro ATX Form Factor Dimension: 21.0 cm x 17.0cm
|
| H/W Monitoring |
N/A
|
| BIOS |
N/A
|
| Special Features |
N/A
|
| Software Features |
N/A
|
| Operating System Support |
Microsoft Window XP / Vista / 7 / 8 / 8.1 / 10
|
| Package Dimension |
(W x D x H) : 23.00 x 28.00 x 5.50 cm |
| Gross Weight |
0.60 KG |
| Volume |
3,542.00 cm3 |
