| Brand |
LONGWELL ราคา 1,390 บาท Inc.Vat |
| Model |

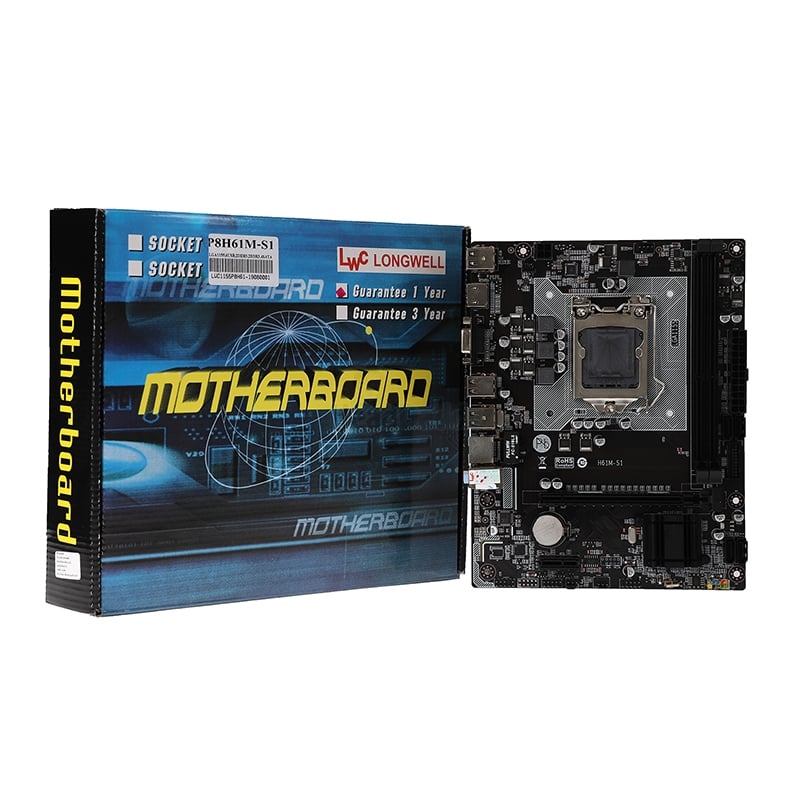

P8H61-S1
|
| CPU Support |
Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors
|
| Socket |
1155
|
| Chipset |
H61
|
| Memory Support |
Dual Channel DDR3 Memory Technology
2 x DDR3 DIMM Slots
Support DDR3 1600/1333/1066 MHz Non-ECC, Un-Buffered
Max.capacity up to 16B Memory
|
| Memory Type |
DDR3
|
| Memory Bus |
1600 / 1333 / 1066 MHz
|
| Memory Slot |
2 Slots
|
| Graphics |
Integrated Graphics Processor
|
| Audio |
Realtek® ALC 662 Channel High Definition Audio CODEC
|
| Expansion Slots |
1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
|
| Storage |
4 x SATA 3.0Gb/s Connector
|
| Internal I/O Connectors |
1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x F USB 3.0 Gen1 connectors
1 x F USB 2.0 Connector
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector
|
| Back Panel Connectors |
6 x USB 2.0 Ports
1 x HDMI Port
1 x VGA (D-Sub) Port
1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)
3 x Audio Jacks: Line in / Speaker / Microphone
|
| LAN |
10/100 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8106E
|
| Form Factor |
Micro ATX Form Factor Dimension: 23.4 cm x 17.0cm
|
| Operating System Support |
Microsoft® Window® 7 / 8 / 10
|
| Package Dimension |
(W x D x H) : 24.00 x 28.00 x 5.00 cm |
| Gross Weight |
0.60 KG |
| Volume |
3,360.00 cm3 |
