| Brand |
LONGWELL ราคา 1,390 บาท Inc.Vat |
| Model |

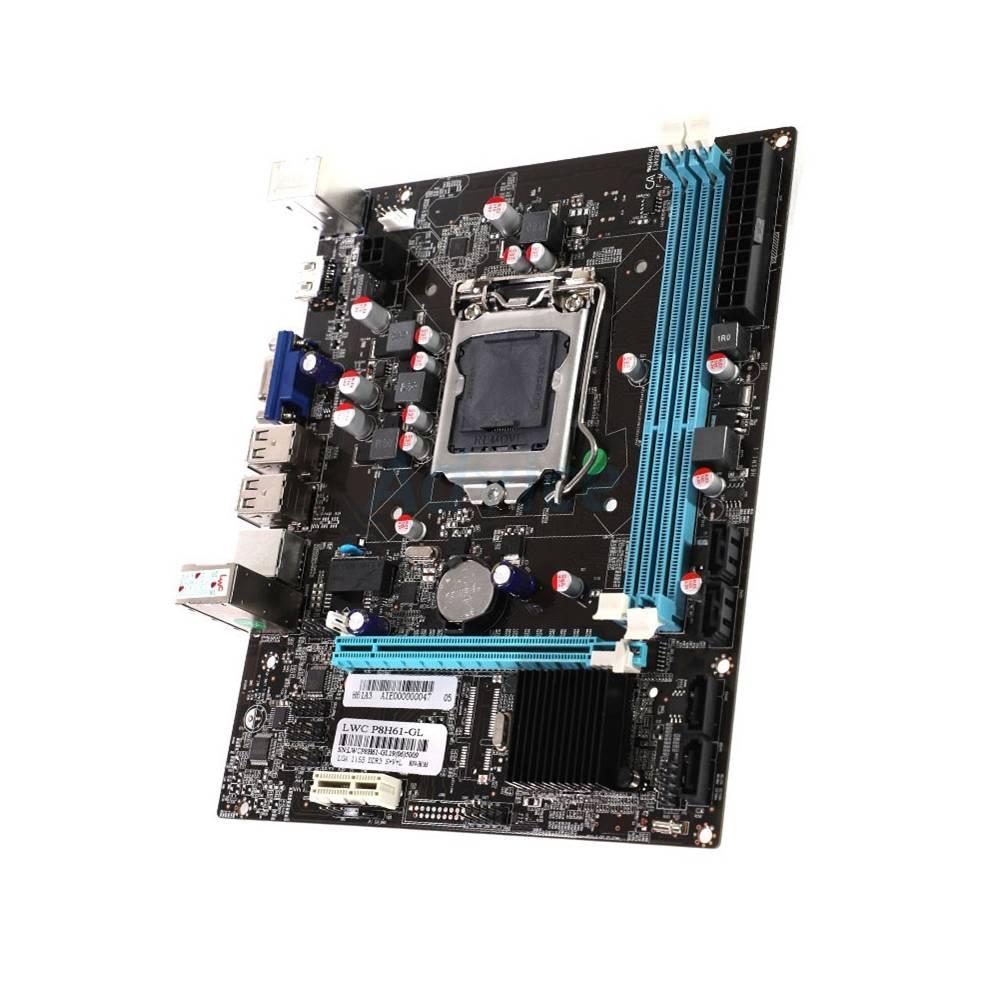

P8H61-GL
|
| CPU Support |
Intel® 2nd/3rd Generation Cord i3/i5/i7/Pentium®/Celeron® Processors
|
| Socket |
1155
|
| Chipset |
Intel® H61
|
| Memory Support |
2 x DDR3 DIMM Slots
Support DDR3 1600/1333/1066 MHz Non-ECC, Un-Buffered Max.8GB
|
| Memory Type |
DDR3
|
| Memory Bus |
1600 / 1333 / 1066 MHz
|
| Memory Slot |
2 Slots
|
| Audio |
Realtek® ALC 662 5.1 Channel High Definition Audio CODFC
|
| Expansion Slots |
1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
|
| Storage |
4 x SATA
|
| Internal I/O Connectors |
1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
2 x F USB 2.0 Connector
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector
|
| Back Panel Connectors |
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x HDMI Port
1 x VGA (D-Sub) Port
4 x USB Port
1 x RJ-45 LAN Port With LED (ACT/LINK LED and SPEED LED)
3 x Audio Jack : Line in/ Speaker/ Microphone
|
| LAN |
10/100 Mb/s Auto Negotiation Half/Full duplex capability Realtek® RTL8105, RTL8111E
|
| Form Factor |
Micro ATX Form Factor Dimenstion : 21.2 cm. x 17.0 cm. Solid capacitor design
|
| Operating System Support |
Windows XP/ Vista/ 7/ 8/ 10
|
| Package Dimension |
(W x D x H) : 24.00 x 29.00 x 6.00 cm |
| Gross Weight |
0.60 KG |
| Volume |
4,176.00 cm3 |
