| Brand |
LONGWELL ราคา 1,550 บาท Inc.Vat |
| Model |

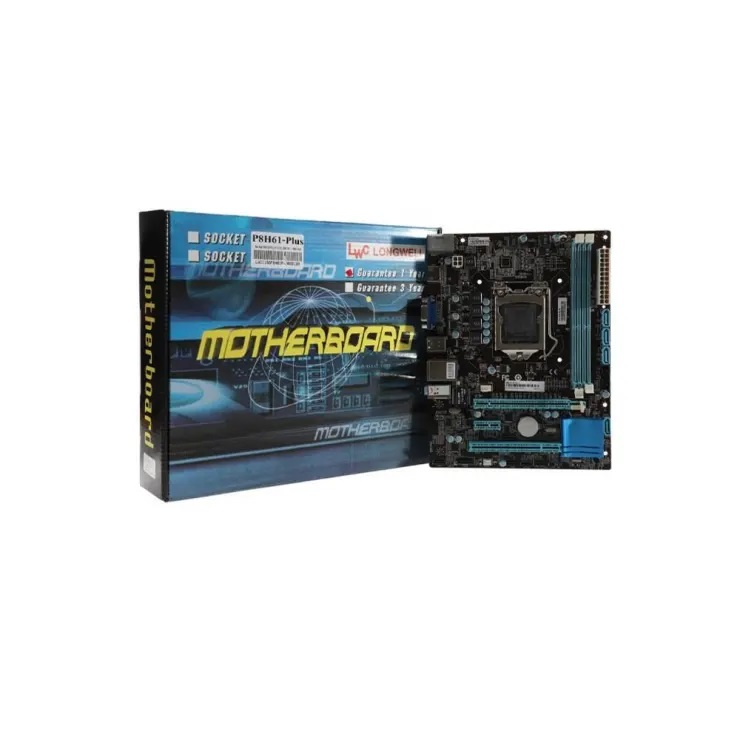

INTEL P8H61-PLUS
|
| CPU Support |
Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors
|
| Socket |
1155
|
| Chipset |
Intel H61
|
| Memory Support |
Dual Channel DDR3 Memory Technology Non-ECC, Un-Buffered
Max.capacity up to 16GB Memory
|
| Memory Type |
DDR3
|
| Memory Bus |
1600/1333/1066 MHz
|
| Memory Slot |
2 Slots
|
| Audio |
Realtek® High Definition Audio CODEC
|
| Expansion Slots |
1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
1 x PCI
|
| Storage |
3 x SATA II 3.0Gb/s Connector
1 x SATA III 6.0Gb/s Connector
|
| Internal I/O Connectors |
1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x F USB 2.0 Connector
1 x F USB 3.0 Gen1 connectors
1 x COM port Connector
1 x CMOS
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector
|
| Back Panel Connectors |
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x VGA (D-Sub) Port
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
3 x Audio Jacks: Line in / Speaker / Microphone
|
| LAN |
10/100/1000 Mb/s Realtek® auto negotiation Half/Full duplex capability
|
| Form Factor |
Micro ATX Form Factor ; 22.5cm x 17.0cm
|
| Operating System Support |
Microsoft® Window® XP / Vista / 7 / 8 / 10
|
| Dimension |
(W x D x H) : 17.00 x 22.50 x 3.70 cm |
| Net Weight |
0.41 KG |
| Package Dimension |
(W x D x H) : 24.00 x 28.00 x 6.00 cm |
| Gross Weight |
0.60 KG |
| Volume |
4,032.00 cm3 |
