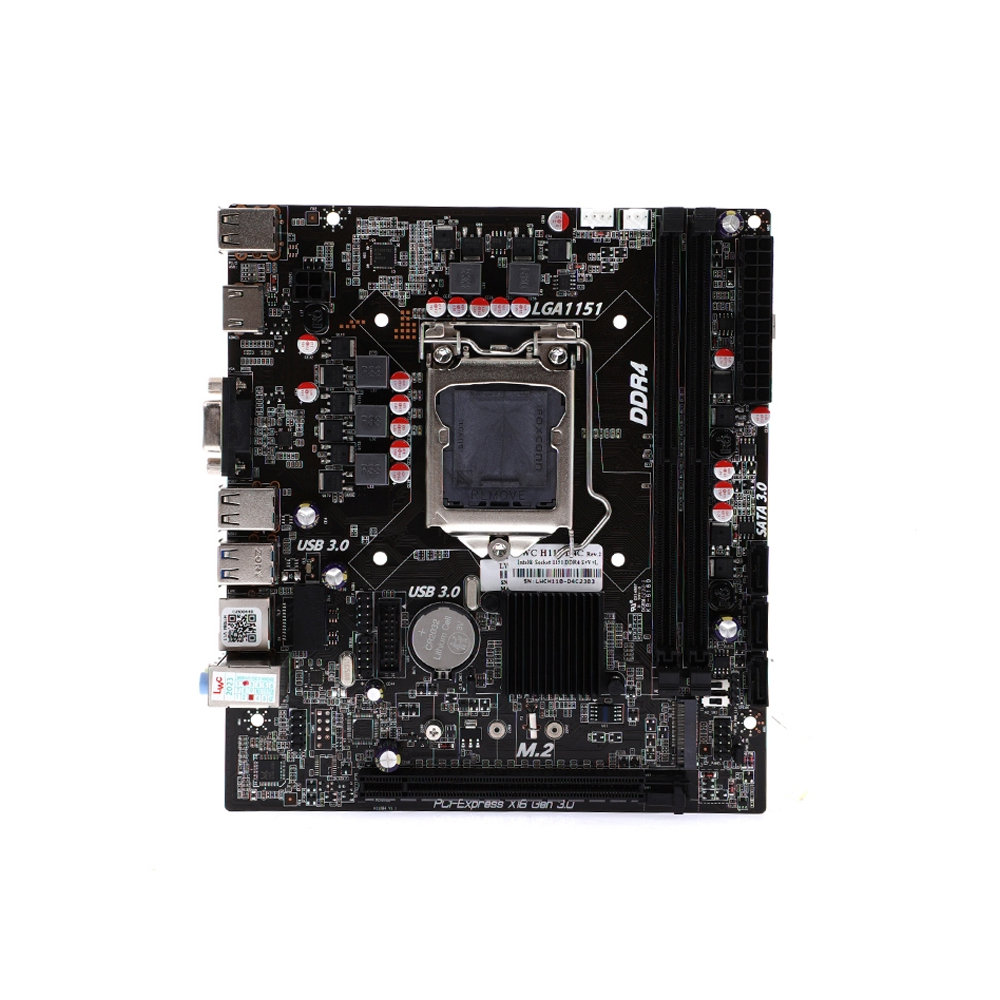

H110-D4C (REV.2.0)

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel®
Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron®
processors in the LGA1151 package L3 cache varies with CPU

INTEL

1151

Intel H110

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Due to a Windows 32-bit operating system limitation, when more than
4 GB of physical memory is installed, the actual memory size
displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules

2400

Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 512 MB

None

Audio Realtek® ALC662 codec
High Definition Audio
2/4/5.1-channel

1 x PCI Express x16 slot, running at x16

Pcie 3.0

4 x SATA 6Gb/s connectors

1 x NVME M.2

Pcie3.0

1

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
          6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)

1 x 24-pin ATX main power connector
         1 x 4-pin ATX 12V power connector
         4 x SATA 6Gb/s connectors
         1 x CPU fan header
         1 x system fan header
         1 x front panel header
         1 x front panel audio header
         1 x USB 3.0/2.0 header
         2 x USB 2.0/1.1 headers
         1 x Clear CMOS jumper

1 x USB2.0 mouse port
         1 x USB2.0 Keyboard port
         1 x VGA port
         1 x HDMI port
         2 x USB 3.0/2.0 ports
         2 x USB 2.0/1.1 ports
         1 x RJ-45 port
         3 x audio jacks (Line In, Line Out, Mic In)

Realtek LAN chip (10/100 Mbit)

None

Micro ATX

N/A

N/A

N/A

N/A

N/A

มีฝาหลัง+สายSata+Driver
