| Brand |
LONGWELL ราคา 1,490 บาท Inc.Vat |
| Model |

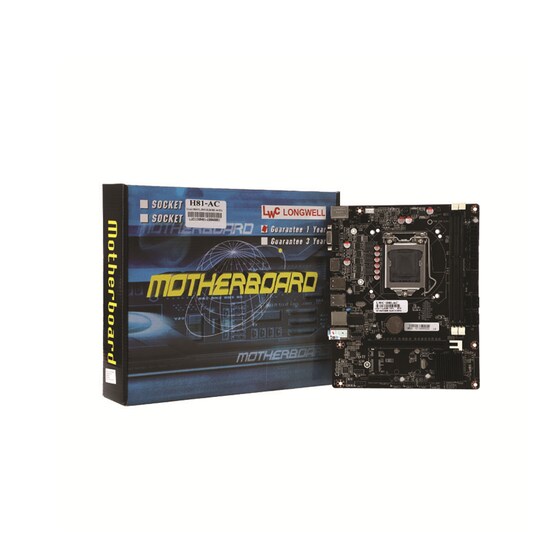

LWC H81-B8HV2
|
| CPU Support |
Supports 4th generation Intel® Core™ i7 / Core™ i5 / Core™ i3 processors
|
| Socket |
1150
|
| Chipset |
Intel H81
|
| Memory Support |
2 x DIMM Max 16GB Support DDR3-1600/1333/1066 MHz Non-ECC, Un-Buffered Memory
|
| Memory Type |
DDR3
|
| Memory Bus |
1600 / 1333 / 1066 MHz
|
| Memory Slot |
2 Slots
|
| Graphics |
Integrated Graphics Processor
|
| Multi Graphic Support |
None
|
| Audio |
Realtek® High Definition Audio Code
|
| Expansion Slots |
1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
|
| Storage |
2 x SATA II 3.0Gb/s Connector
2 x SATA III 6.0Gb/s Connector
|
| USB |
N/A
|
| Internal I/O Connectors |
1 x 24-pin EATX Power Connector
1 x 8-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x F USB 3.0 connectors
1 x F USB 2.0 Connector
1 x CMOS
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector
|
| Back Panel Connectors |
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x HDMI Port
1 x VGA (D-Sub) Port
1 x RJ-45 LAN port
3 x Audio Jacks: Line in / Speaker / Microphone
|
| LAN |
10/100/1000 Mb/s auto negotiation Half/Full duplex capability
|
| Wireless Data Network |
None
|
| Form Factor |
Micro ATX Form Factor Dimension: 22.1 cm x 17.0cm
|
| H/W Monitoring |
N/A
|
| BIOS |
N/A
|
| Special Features |
N/A
|
| Software Features |
N/A
|
| Operating System Support |
Microsoft Window 7 / 8 / 8.1 / 10
|
| Package Dimension |
(W x D x H) : 23.00 x 28.00 x 5.50 cm |
| Gross Weight |
0.60 KG |
| Volume |
3,542.00 cm3 |
